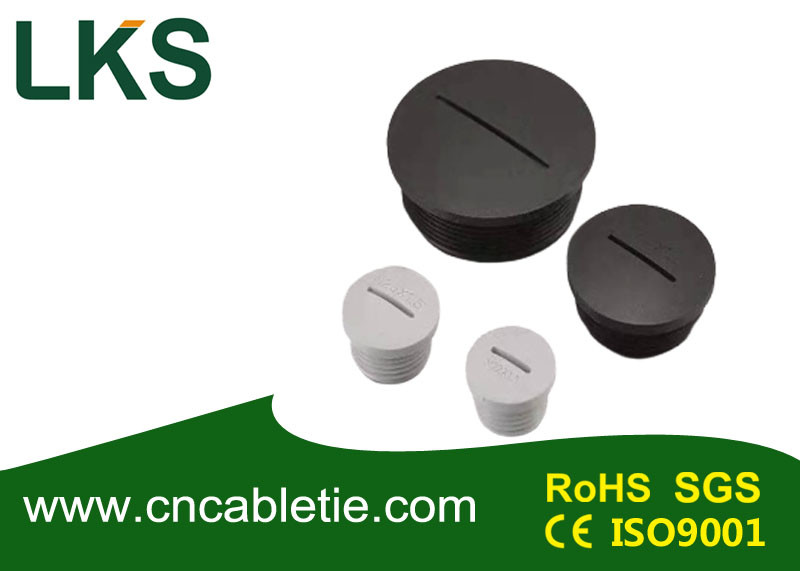

Nylon Round Waterproof Screw Plug PG/METRIC Type

Nylon Round Waterproof Screw Plug PG/METRIC Type
Nylon Round Waterproof Screw Plug PG/METRIC Type
Informations de base
Lieu d'origine: Chine
Nom de marque: LKS
Certification: RoHS,SGS,CE,ISO9001
Quantité de commande min: 10000 pièces
Détails d'emballage: Polyac
Délai de livraison: 5 jours
Conditions de paiement: T/T, LC
Capacité d'approvisionnement: 100000 pièces par jour
meilleur prix Contactez
Description de produit

Nylon Round Waterproof Screw Plug PG/METRIC Type 0



Technical Information:


  • Model:PG/METRIC Type
  • Material: PA66/PP.
  • Size: PG7-48, M12-63.
  • Color: Grey/ Black.
  • Protection Level: IP68.
  • Weather Strip: NBR, EPDM.
  • Working temperature:-40℃ to 100℃.
  • Packing:100pcs/bag,50pcs/bag,20pcs/bag.
  • Port: Shanghai/Ningbo.




  • Material:Adopting nylon PA66 certificated by UL.
  • Weather strip:Made of UL approved nylon PA66 (fire rating UL94V-2)
  • Working Temperature:-40℃ to 100℃
  • roduct Features: IP68(within fasteing range,O type was her will be used in tightening part)
  • Color:Light grey(RAL7035),black(RAL9005),other color can be customized according to request.
  •
  •
  • Model Cable Range() Thread O.D AG()mm Thread Length GL(mm) Spanner Size(mm)
    PG7 12.5 8.5 12.5 15
    PG9 15.2 9 13 19
    PG11 18.6 9 13 22
    PG13.5 20.4 9 13 25
    PG16 22.5 10 14.5 27
    PG19 24 10.5 15.5 29
    PG21 28.3 10.5 15.5 33
    PG25 30 11 16 35
    PG29 37 12 16 44
    PG36 47 13.5 18 55
    PG42 54 13.5 18 62
    PG48 59.3 14.5 19 68
    M12X1.5 12 8.5 12.5 15
    M16X1.5 16 9 13 19
    M18X1.5 18 9 13 22
    M20X1.5 20 9 13 25
    M22X1.5 22 10 14.5 27
    M24X1.5 24 10.5 15.5 29
    M25X1.5 25 10.5 15.5 30
    M27X1.5 27 11 15.5 33
    M30X1.5 30 11 16 35
    M32X1.5 32 11 16 38
    M40X1.5 40 11.5 16 46
    M50X1.5 50 13.5 18 56
    M63X1.5 63 14 19 68
