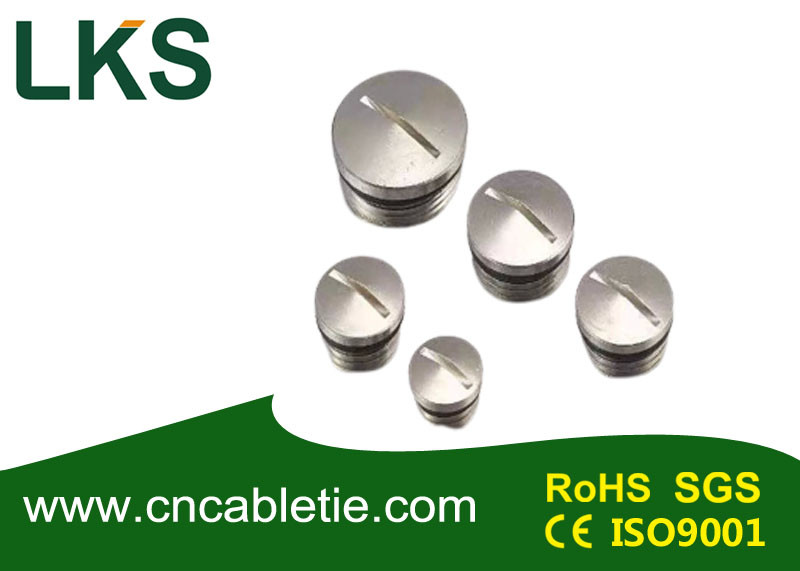

Brass Waterproof Screw Plug PG/METRIC Type(Round or Hexagon)

Basic Information
Place of Origin: China
Brand Name: LKS
Certification: RoHS,SGS,CE,ISO9001
Minimum Order Quantity: 10000pcs
Packaging Details: polybag
Delivery Time: 5days
Payment Terms: L/C, T/T
Supply Ability: 100000pcs per day
Product Description

Brass Waterproof Screw Plug PG/METRIC Type(Round or Hexagon) 0





Technical Information:


  • Model:PG/METRIC Type(Round or Hexagon)
  • Material:Brass coated by nickel.
  • Size: PG7-63, M10-63.
  • Color: Metallic Color.
  • Protection Level: IP68.
  • Weather Strip: NBR, EPDM.
  • Working temperature:-40℃ to 100℃.
  • Packing:100pcs/bag,50pcs/bag,20pcs/bag.
  • Port: Shanghai/Ningbo.

Description:


  • Thread:PG, Metric.
  • Nickel plated brass.
  • IP68(within fasteing range,O type was her will be used in tightening part).
  • -40℃ to 100℃ in static state.





Model Cable Range(mm) Thread O.D AG(mm) Thread Length GL(mm) Spanner Size(mm)
PG7 12.5 6 9 14
PG9 15.2 7 10.5 17
PG11 18.6 7 10.5 20
PG13.5 20.4 7.5 11 22
PG16 22.5 7.5 11.5 24
PG19 24 8 11.5 26
PG21 28.3 8 12 30
PG25 30 9 12.5 32
PG29 37 9 12.5 40
PG36 47 9 16 50
PG42 54 10 17 57
PG48 59.3 11 18 64
M12X1.5 12 6 9 14
M16X1.5 16 7 10.5 17
M18X1.5 18 7 10.5 20
M20X1.5 20 7.5 11 22
M22X1.5 22 7.5 11.5 24
M24X1.5 24 8 11.5 26
M25X1.5 25 8 12 27
M27X1.5 27 8 12 30
M30X1.5 30 9 12.5 32
M32X1.5 32 9 13 34
M40X1.5 40 9 14 42
M50X1.5 50 10 17 52
M63X1.5 63 11 19 68
