LKS-B1 Series 304 316 Stainless Steel Strapping Band with plastic reelings
LKS-B1 Series 304 316 Stainless Steel Strapping Band with plastic reelings

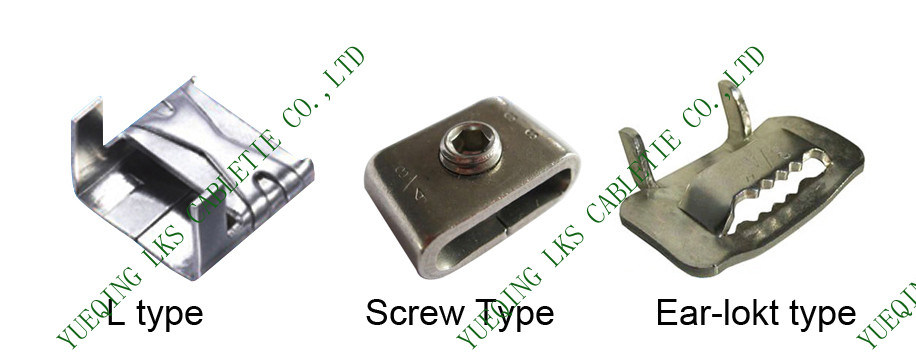

Suitable Buckle: L Type Stainless Banding Buckle , Giant Ear-Lokt Buckle and Stainless Screw Type Buckle.
Item No. | Band Size T×W(mm) | Packing(m/roll) | Material |
LKS-B1 | 0.3×6.3 | 30,40,50 | 201,304,316 |
0.3×9.5 | |||
0.3×12.7 | |||
0.4×15 | |||
0.76×16 | |||
0.76×19 | |||
Other size can be made under requirements. | |||
LKA Type Stainless steel banding tool
1.Specifications
1)Suit for width1 mm~25mm bands
2)Fasten easily & tightly
3)Factory, five year experience
4)MOQ:1pcs
2. How to use?
(1) Remove the stainless steel band put clasps or direct to take Length band through the bundled objects;
(2) Cable ties placed in tight with the head of taut block then opening and the pressure in the pressure of the following;
(3) Shake horizontal rotating screw taut band;
(4) Up against tight with the machine so that the pressure to buckle up in the tie;
(5) Right hand cutter handle cut off the band away tight with a machine with a hammer smashing , live clasps auricular suppress band head.
LQA Type Stainless steel banding tool
1.Specifications
(1) For the width 6.4mm-25mm band, thickness can not be more than
0.60mm,durable and convenient.
(2)Tighten strap and cut off the excess part strap;
(3)For the installation of light stainless steel band, prefabricated series tie and other packaging operation;
(4)Easy operation,efficient installation
(5)Used for general packaging operation.
(6)Weight: about 1.5 kg.
2.How to use?
(1) Place tie into the opening channel between the blade and rotating shaft.
(2) Move gear wheel front and back, fastening tie.
(3) Push handle forward, and pull blade handle downward, cut off tie.
Sweep away the surplus tie, move tool away, lock it.
LSA Type Banding Tool
Used for Banding with Screw type Buckle.
Other Products: | ||||||||||||||
