Place of Origin: | China |
---|---|
Brand Name: | LKS |
Certification: | RoHs |
Model Number: | LKS-900mm universal stainless steel cable ties |
Minimum Order Quantity: | 10000pcs |
Price: | enquiry for latest price |
Packaging Details: | 100PCS/bag,Other packaging methods under requirements |
Delivery Time: | 5-10days |
Payment Terms: | T/T,Western Union |
Supply Ability: | 50000pcs |
Type: | Clamp | Material: | Steel |
---|

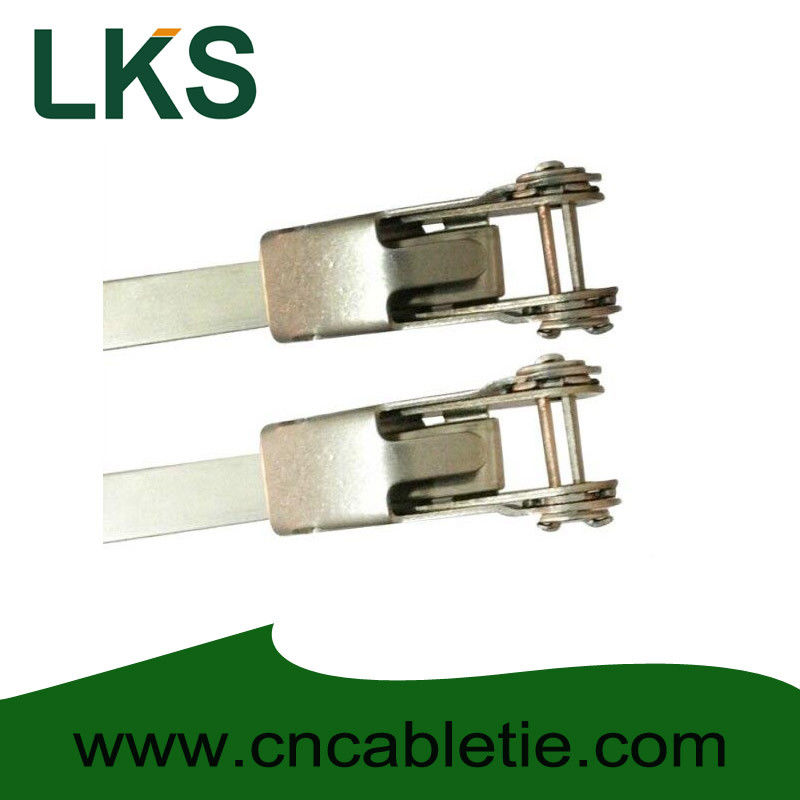

LKS-900mm Universal Stainless Steel Clamping Ties
1. Material: 201/304/316 stainless steel
2. Width: 10mm
3. Thickness: 0.2mm
4. Usage: for binding communication cables, labels, boats, mining industry, advertisement, industry etc.
5. Surface Treatment: spray (spread with plastics or plastic-coating)
6. Specifications:
Model No. |
Width(mm) |
Length(mm) |
Thickness(mm) |
Max. Bundle Dia. |
||||
Inch |
mm |
Inch |
mm |
Inch |
mm |
Inch |
mm |
|
LKS-400 |
0.4 |
10 |
15.7 |
400 |
0.008 |
0.2 |
4.3 |
110 |
LKS-500 |
19.7 |
500 |
5.4 |
138 |
||||
LKS-600 |
23.6 |
600 |
7.1 |
180 |
||||
LKS-700 |
27.6 |
700 |
8.3 |
210 |
||||
LKS-800 |
31.5 |
800 |
9.4 |
240 |
||||
LKS-900 |
35.4 |
900 |
10.6 |
270 |
||||
LKS-1000 |
39.4 |
1000 |
11.8 |
300 |
||||
LKS-1100 |
43.3 |
1100 |
13.4 |
340 |
||||
LKS-1200 |
47.2 |
1200 |
14.6 |
370 |
||||
LKS-1300 |
51.2 |
1300 |
15.7 |
400 |
||||
LKS-1400 |
55.1 |
1400 |
16.9 |
430 |
||||
LKS-1500 |
59 |
1500 |
18.1 |
460 |
||||
LKS-2000 |
78.7 |
2000 |
23.6 |
600 |
||||
LKS-3000 |
118.1 |
3000 |
36.2 |
920 |
||||
LKS-4000 |
157.5 |
4000 |
47.2 |
1200 |
||||
LKS-5000 |
196.9 |
5000 |
59 |
1500 |
Universal Stainless Steel Cable Tie Operating Manual
Parts Name | ||
①Plum blossom Washer | ⑤Small bracket | |
②Round Washer | ⑥Stainless steel band | |
③Spindle | Attention: | |
④Big bracket | Please wear gloves when operating |
Step 1:Insert the tail of ⑥ stainless steel band into the slot of ③spindle.
Step 2:Hold ⑤bracket by left hand,tighten up the ⑥steel band by right hand.
Step 3:Hold the ⑤small bracket by left hand,pushing the ④big bracket back and forth,until the steel band strapped tightly.
Step 4:After strapped tightly,hold the steel buckle by left hand,take hammer by right hand,hammering the ④small bracket and ⑤big bracket down.
Step5:At the end, remove the rest ⑥steel band by scissors.
