Quality Wiring Duct for decoration factory
<
Quality Wiring Duct for decoration factory
>

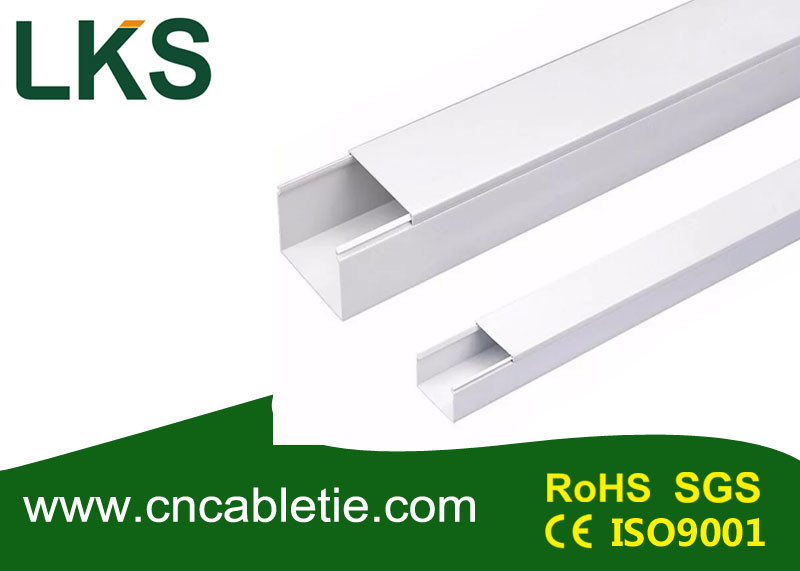

Wiring Duct for decoration

Specifications
Key Attributes
Brand Name: LKS
Model Number: Pzc
Place of Origin: China
Certification: RoHS,SGS,CE,ISO9001
Minimum Order Quantity: 10000pcs
Supply Ability: 100000pcs per day
Delivery Time: 5days
Payment Terms: L/C, T/T
Standard Packaging: polybag
Product Description

Wiring Duct for decoration

Technical Information:

  • Brand Name:LKS
  • Color: White.
  • Packing:36 to 200 (meter/box).
  • Product material: high quality PVC material.
  • Working temperature: static -40 ℃ ~65 ℃.
  • Side hole (Q/P) : Bold font shall prevail by default. Closed type shall be calculated separately.

Features:

  • Material: Default white (other colors need to be customized)
  • Structure: It is composed of tank bottom and tank cover, fully enclosed.
  • Length: The standard length is two meters.Can provide fixed length service.
  • Working temperature: static -40 ℃ ~65 ℃.







Specification(H*W) Packing (meter/box) Outlet hole (open/close)
Pzc 10*15 200 Open/Closed
Pzc 15*15 200 Open/Closed
Pzc 10*20 200 Open/Closed
Pzc 10*25 200 Open/Closed
Pzc 15*25 200 Open/Closed
Pzc 25*25 200 Open/Closed
Pzc 15*35 200 Open/Closed
Pzc 20*30 100 Open/Closed
Pzc 20*35 100 Open/Closed
Pzc 20*40 100 Open/Closed
Pzc 20*50 100 Open/Closed
Pzc 25*40 100 Open/Closed
Pzc 30*50 100 Open/Closed
Pzc 30*60 100 Open/Closed
Pzc 40*40 100 Open/Closed
Pzc 40*60 100 Open/Closed
Pzc 30*80 60 Open/Closed
Pzc 30*100 60 Open/Closed
Pzc 50*50 100 Open/Closed
Pzc 50*80 60 Open/Closed
Pzc 50*100 60 Open/Closed
Pzc 60*60 60 Open/Closed
Pzc 60*80 60 Open/Closed
Pzc 60*100 50 Open/Closed
Pzc 80*80 36 Open/Closed
Pzc 80*100 36 Open/Closed
Pzc 100*100 36

Open/Closed
