Item No.

T×W(mm)

Material

Painted layer material

Body

Package

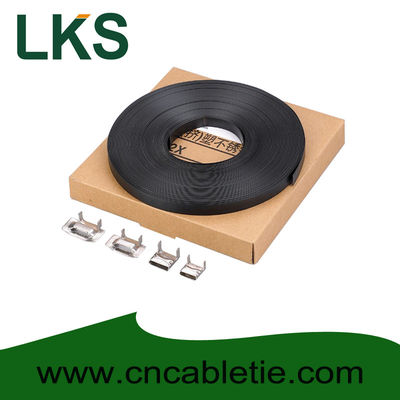

LKS-CB2

1.2×6

1GRr18Ni9

PVC

Non opening hole

30m/roll 500m/carton

1.2×8

1GRr18Ni9

PVC

30m/roll 500m/carton

1.2×12

1GRr18Ni9

PVC

30m/roll 400m/carton

1.2×16

1GRr18Ni9

PVC

25m/roll 400m/carton

1.2×19

1GRr18Ni9

PVC

20m/roll 400m/carton

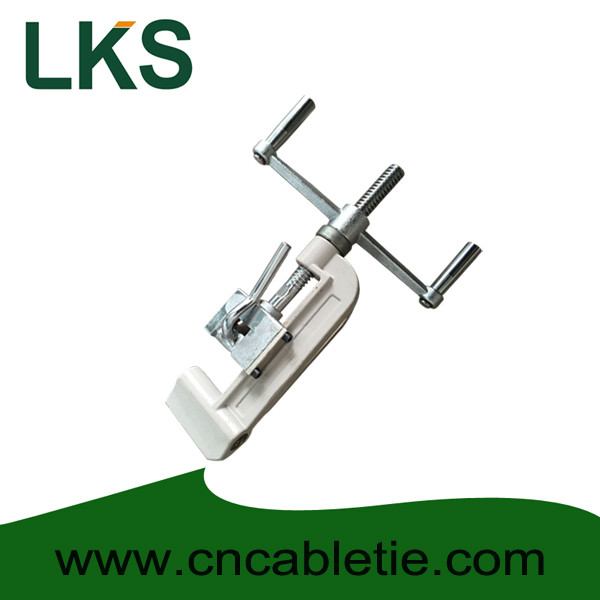

LKA Stainless steel banding tension tool(Normal type)

1.Specifications

1)Suit for width1 mm~25mm bands
2)Fasten easily & tightly
3)Factory, five year experience

2. How to use?
(1) Remove the stainless steel band put clasps or direct to take Length band through the bundled objects;
(2) Cable ties placed in tight with the head of taut block then opening and the pressure in the pressure of the following;
(3) Shake horizontal rotating screw taut band;
(4) Up against tight with the machine so that the pressure to buckle up in the tie;
(5) Right hand cutter handle cut off the band away tight with a machine with a hammer smashing , live clasps auricular suppress band head.

LQA Stainless steel banding tension tool (Normal type)

1.Specifications
(1) For the width 6.4mm-25mm band, thickness can not be more than
0.60mm,durable and convenient.

(2)Tighten strap and cut off the excess part strap;
(3)For the installation of light stainless steel band, prefabricated series tie and other packaging operation;
(4)Easy operation,efficient installation
(5)Used for general packaging operation.
(6)Weight: about 1.5 kg.

2.How to use?
(1) Place tie into the opening channel between the blade and rotating shaft.
(2) Move gear wheel front and back, fastening tie.
(3) Push handle forward, and pull blade handle downward, cut off tie.
Sweep away the surplus tie, move tool away, lock it.

LK-402 stainless steel banding tension tool (Heavy duty)

1.Specifications

(1) Suit for bands width from 9mm (3/8") to 35mm (1 2/5" ) .
(2) Fasten easily & tightly

(3)Spinning Handle for ease of tightening

2. How to use?

(1) Remove the stainless steel band put clasps or direct to take Length band through the bundled objects;

(2) Cable ties placed in tight with the head of taut block then opening and the pressure in the pressure of the following;

(3) Shake horizontal rotating screw taut band;

(4) Up against tight with the machine so that the pressure to buckle up in the tie;

(5) Right hand cutter handle cut off the band away tight with a machine with a hammer smashing , live clasps auricular suppress band head.

LSA Screw type Banding Tool
